KW3-2TS Largre Micro Switch Normally Closed 10A for General Purpose Electrical and Mechanical Applications

Short Description:

Model no. KW3-2TS

DESCRIPTION：LARGE MICRO SWITCH

RATING：10A 125V/250V AC

LIFE：50000

contact resistance：50mΩ（Max）

insulation resistance：500VDC  100MΩ（Min）

Type：Lever

Contact Type：Normally Closed / 3-Pin Changeover

FEATURES

• Short travel for precise triggering

• Safety applications

• Limit protection

• overload detection


Product Detail

FAQ

Product Tags

APPLICATIONS:
Home Appliances | Industrial Automation | Automotive Electronics | Security Devices | Medical Equipment | New Energy

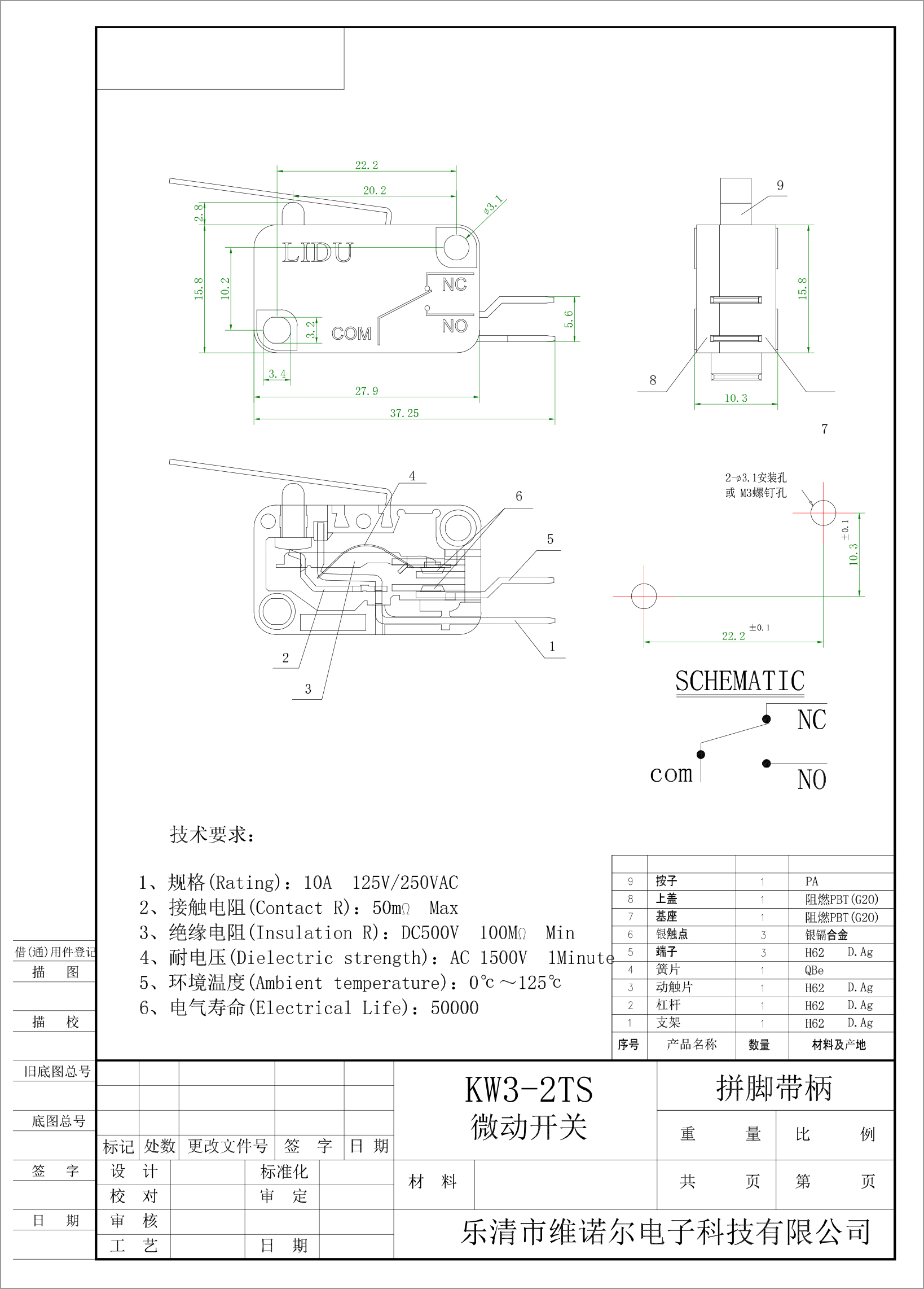

DRAWIING:

KW3-2TS
