KW3-OZ Conversion Type Largre Micro Switch Changeover 3-PIN for Solar Panels/Battery Packs/Chargers/Inverters/Power Stations

Short Description:

Model no. KW3-OZ

DESCRIPTION：LARGE MICRO SWITCH

RATING：16A 125V/250V AC

LIFE：50000

contact resistance：30mΩ（Max）

insulation resistance：500VDC  100MΩ（Min）

Type：No Lever / Short Leg

Contact Type：Normally Closed / Conversion Type

FEATURES

• Short travel for precise triggering

• Safety applications

• Limit protection

• overload detection


Product Detail

FAQ

Product Tags

APPLICATIONS:
Home Appliances | Industrial Automation | Automotive Electronics | Security Devices | Medical Equipment | New Energy

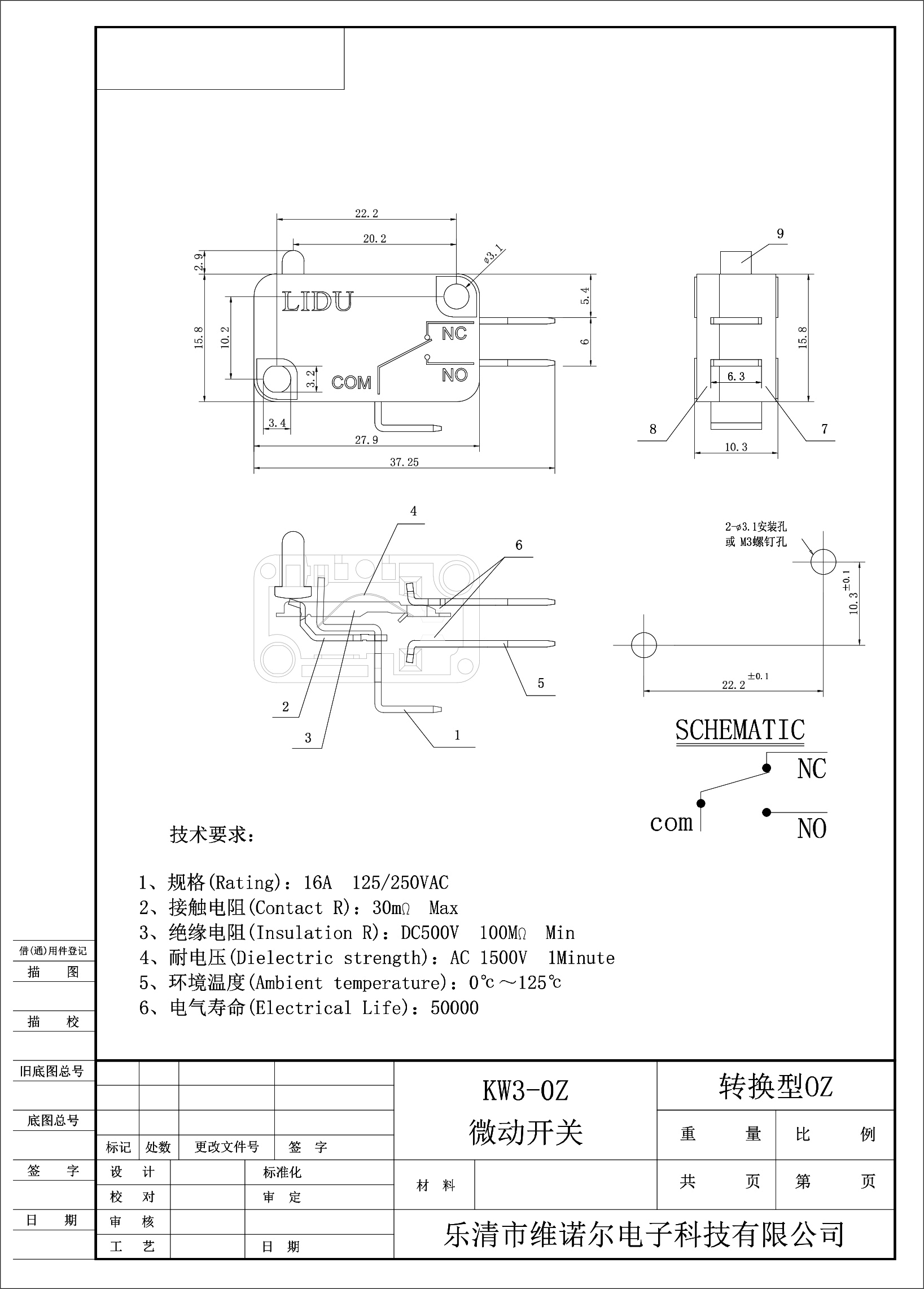

DRAWIING:

KW3-OZ
