Factory hot-selling four-core waterproof small current connector high voltage plug

Short Description:

Product Model: Four-pin plug
Wire size2.5/4/6mm² IP67, IP6K9K (mated)
Operating temperature: -40 ℃ ~ 125 ℃
Material:Plastic housing: PA66+GF
Terminal: Copper alloy, tinned surface
Performance characteristics
Life: ≥500 times
Operation force: 100N
Rated Voltage: 800V DC
Rated current: Max. 40A@ ambient temperature 70℃
Insulation impedance: > 200 MΩ
Insulation voltage: 3000V AC
Electromagnetic shielding: 360° shielding


  • :
  • Product Detail

    FAQ

    Product Tags

    Product Characteristics

    1. High temperature resistance, flame retardant, beautiful and durable.
    2. High quality material selection, reliable, safe and durable products, fall and impact resistant.

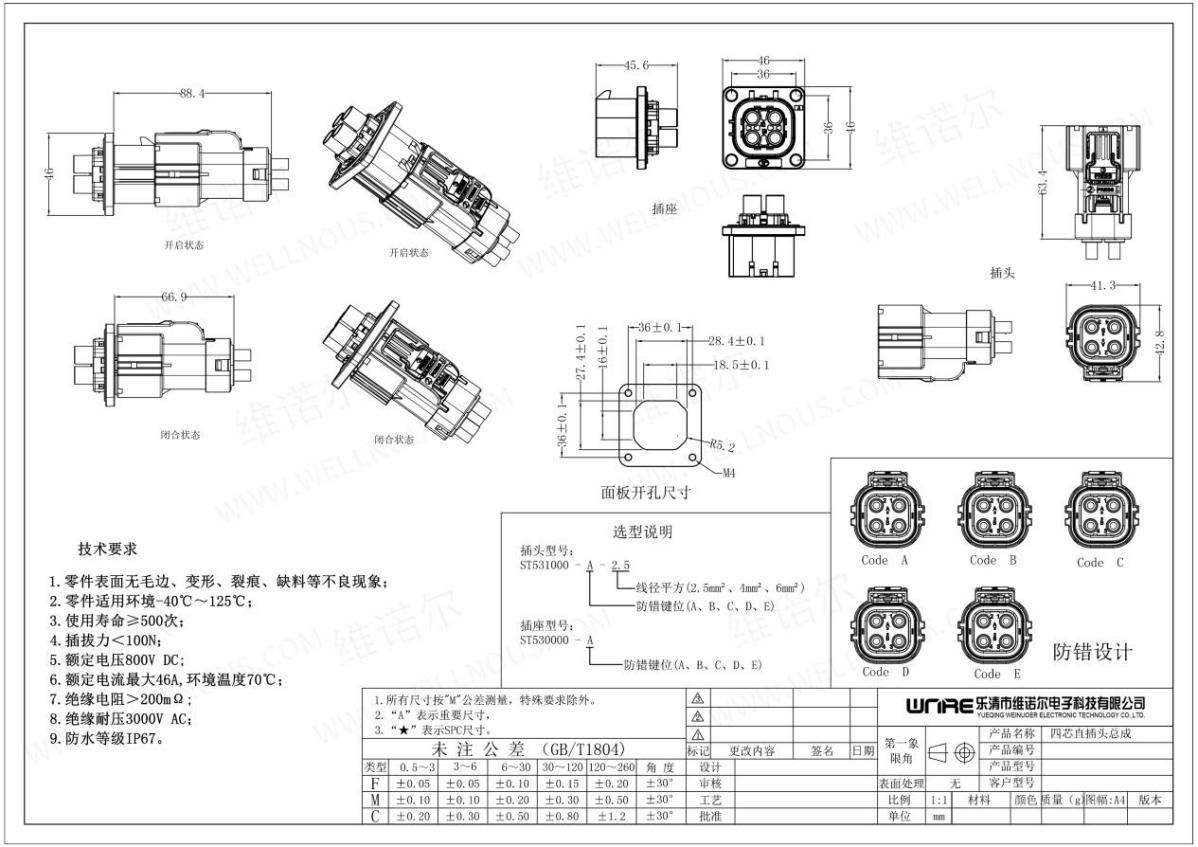

    Product Drawing

    wer
    wer

    1. Run cable through cover and sealing element in turn
    2.Strip 20.5mm outer skin, remain 7mm shielded wire, insert shield inner ring, shielded wire encloses the shield inner ring, insert shield outer ring and rivet7.5mm, strip 5mm inner skin and rivet.
    3. Install wire into main body.
    4. Install sealing element and cover

    Application Areas

    Widely used in: new energy vehicle motors. Electronic control, battery PAK, high voltage distribution box, etc
    Applied to AC slow charging input, air conditioning, oil pump, electric heating and other auxiliary equipment for new energy vehicles.

    we

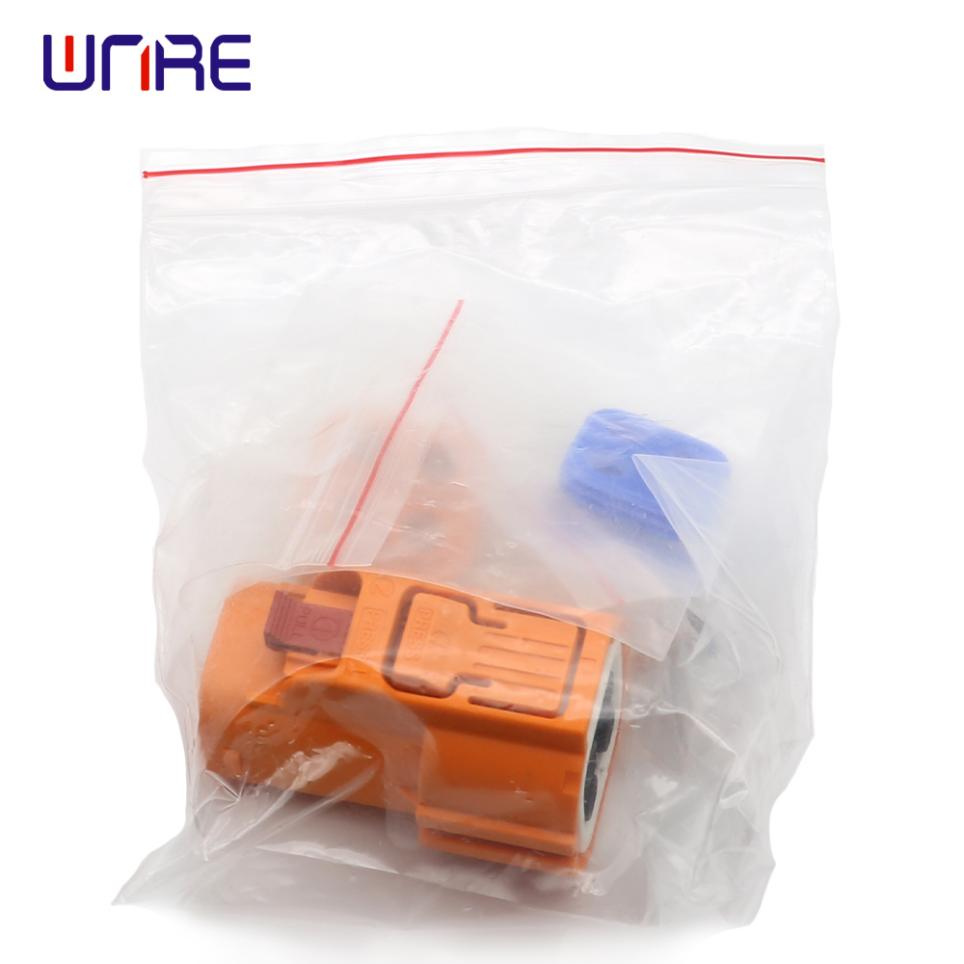

    Package Picture

    we
