High voltage electrical insulation energy storage 8mm three-core connector price is reasonable

Short Description:

Product Model:8mm two-core straight plug socket
Plug: 25mm²( Ø11.6~12.2)35mm²( Ø13.8~14.4)50mm²( Ø15.2~15.8)
Mating design:Serviceable locking leg Locking assurance by CPA Operation with handle


  • :
  • Product Detail

    FAQ

    Product Tags

    Material

    Termianl system:2 x Ø8mm Radsok, silver plated
    wire size: 25/35/50mm², shielding HVIL contact system
    Terminal technology:Crimping for power termination Screw fasten for power terminal Crimping for HVIL termination
    General Features:IP67, IP6K9K (mated) IPXXB (separated) High pressure interlock 360 ° shielding
    Plastic housing: PA66-GF V0, Orange
    Terminal: Copper alloy, silver plated
    RFI/EMI protection: metal shield
    Performance characteristics:
    Operation force: ≤100N
    Temp. Range: - 40 ℃ ~ 140 ℃
    Rated Voltage: 1500V DC
    Mating Cycles: ≥50
    Current Capacity: 125A=25mm²,  150A=35mm²,  200A=50mm²

    Product Characteristics

    1. High temperature resistance, flame retardant, beautiful and durable.
    2. High quality material selection, reliable, safe and durable products.
    3. PA66 texture connector, fall and impact resistant,High quality copper material, the product is reliable and safe.

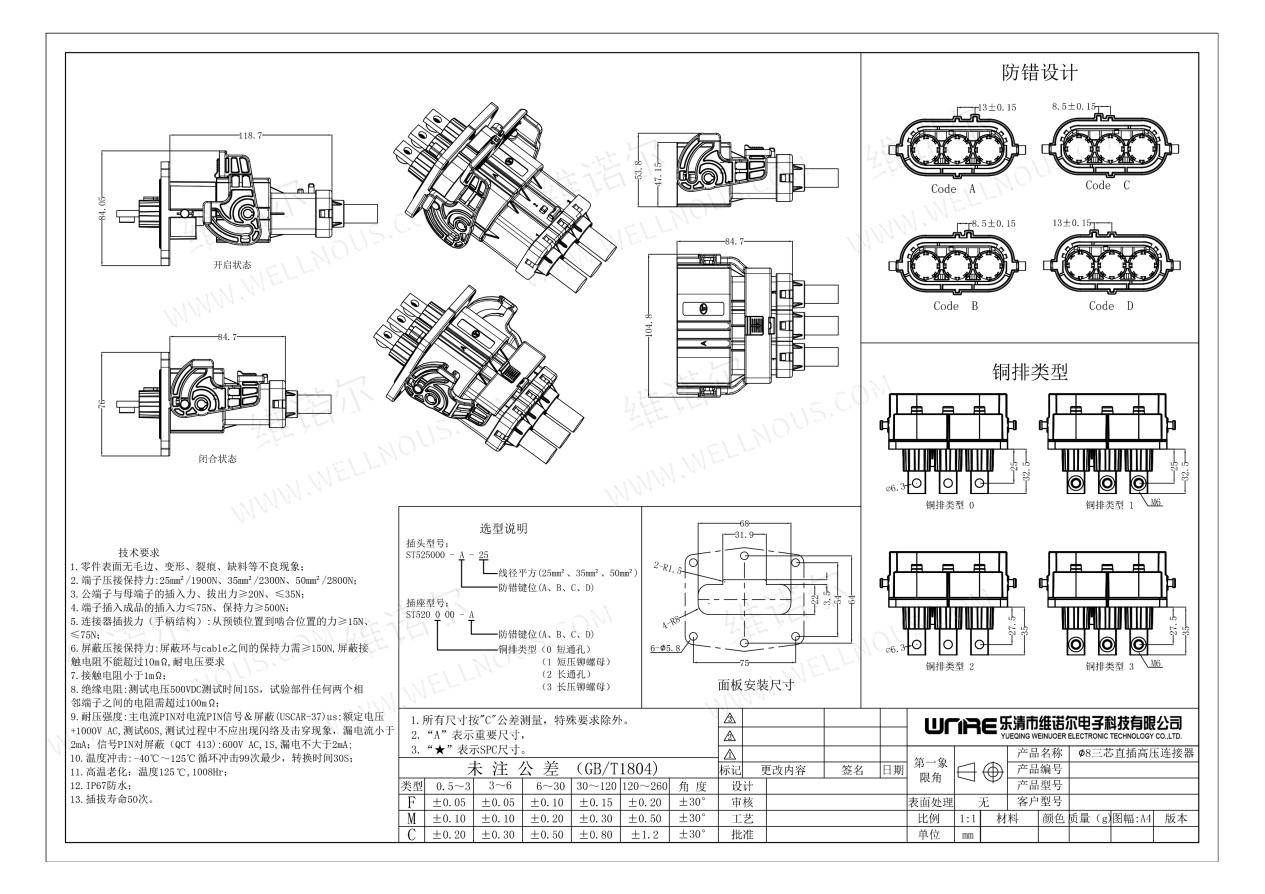

    Product Drawing

    sdf
    df

    Application Areas

    df

    Package Picture

    sdf
    df
